GPGPU

tags

Floating Point , Concurrency , Flynn’s Taxonomy , Machine Learning

https://modal.com/gpu-glossary/readme 🌟

Learning resources

• Making Deep Learning go Brrrr From First Principles  🌟
  • https://timdettmers.com/2023/01/30/which-gpu-for-deep-learning/
  • https://fullstackdeeplearning.com/cloud-gpus/
• GPUs Go Brrr · Hazy Research 
• Are GPUs For You 
• We were wrong about GPUs | Hacker News 
• GPU Programming: When, Why and How? — GPU programming: why, when and how? documentation 
• https://dl.acm.org/doi/pdf/10.1145/3570638
• What Every Developer Should Know About GPU Computing 
• What is a flop? | Hacker News 
• Can we 10x Rust hashmap throughput? - by Win Wang 
• 1. Introduction — parallel-thread-execution 8.1 documentation 
• Udacity CS344: Intro to Parallel Programming | NVIDIA Developer 
• AUB Spring 2021 El Hajj - YouTube 
• How GPU Computing Works | GTC 2021 - YouTube 
• Convolutions with cuDNN – Peter Goldsborough 
• https://medium.com/@penberg/demystifying-gpus-for-cpu-centric-programmers-e24934a620f1

CUDA

The CUDA stack

Note on CUDA Toolkit Installation

• Not System-Wide by Default: Components of the CUDA Toolkit (like the CUDA Runtime API) are not pre-installed across the entire system on Modal.
• Python Package Dependencies: Many Python libraries (e.g., torch) bundle necessary CUDA Toolkit components (like nvidia-cuda-runtime-cu12) as pip-installable dependencies. This makes CUDA available to that specific Python application.
• System-Level Requirement: Some tools or libraries require the CUDA Toolkit to be installed system-wide, not just within a Python environment. These tools may not find pip-installed CUDA components.
• Solution for System-Level: For applications needing a system-wide CUDA Toolkit, Modal recommends using official nvidia/cuda Docker images, which come with the full toolkit pre-installed.

Resources

• Everything You Need To Know About CUDA Tensor Cores (98% util) - YouTube 
• CUDA Programming Course – High-Performance Computing with GPUs - YouTube 
• Course on CUDA Programming 
• The CUDA Parallel Programming Model - 1. Concepts - Fang’s Notebook 

FAQ

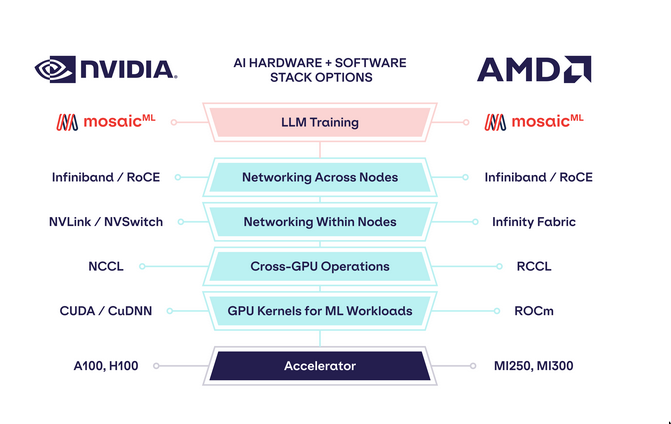

Different kinds of hardware for ML

Nvdia GPUs

• Read A history of NVidia Stream Multiprocessor 

CUDA core

• CUDA cores each core can only do one multiply-accumulate(MAC) on 2 FP32 values
• eg. x += x*y

Tensor core

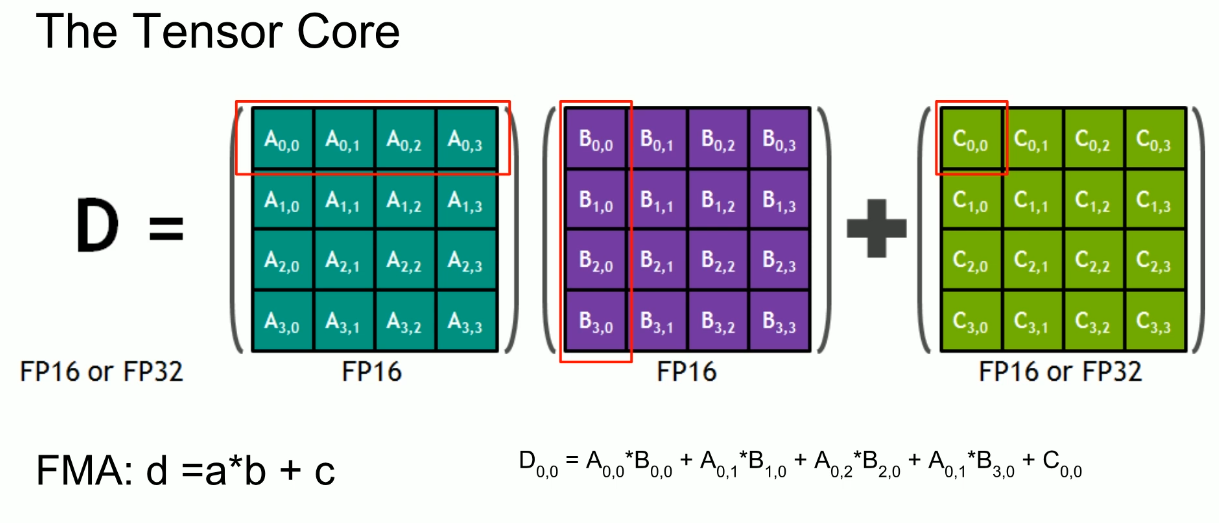

• Tensor core can take a 4x4 FP16 matrix and multiply it by another 4x4 FP16 matrix then add either a FP16/FP32 4x4 matrix to the resulting product and return it as a new matrix.

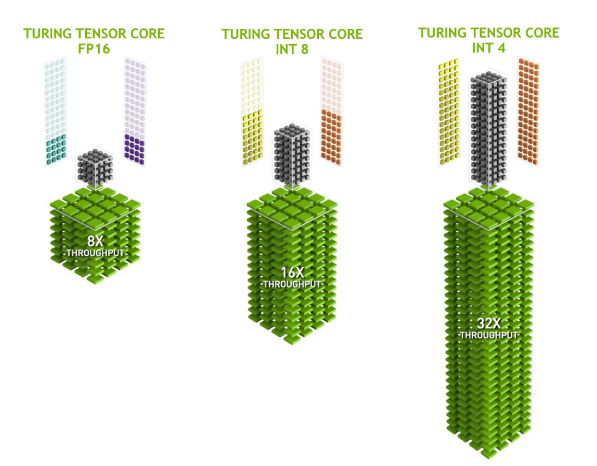

• Certain Tensor cores added support for INT8 and INT4 precision modes for quantization.

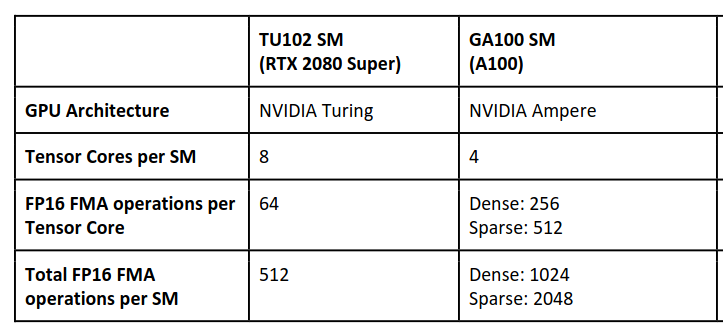

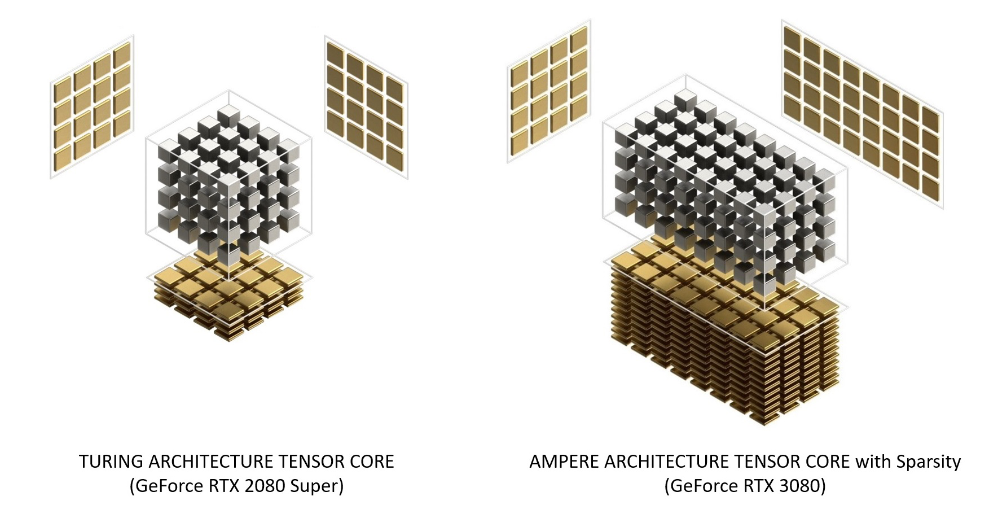

• Now there are various architecture variants that Nvdia build upon, Like Turing Tensor, Ampere Tensor etc.

See Category:Nvidia microarchitectures - Wikipedia 

RAM

???

VRAM

• Memory = how big the model is allowed to be

Related topics

Performance

• Typically measured in floating point operations per second or FLOPS / GFLOPS
• Good if the no. of floating point operations per memory access is high

Floating Point support

See Floating Point

• GPUs support half, single and double precisions
• double precision support on GPUs is fairly recent.
• GPU vendors have their own things and support

F32

float32 is very widely used in gaming.

• float32 multiplication is really a 24-bit multiplication, which is about 1/2 the cost of a 32-bit multiplication. So an int32 multiplication is about 2x as expensive as a float32 multiplication.
• On modern desktop GPUs, the difference in performance (FLOPS) between float32 and float64 is close to 4x

Frameworks

• OpenCL: Dominant open GPGPU computing language
• OpenAI Titron: Language and compiler for parallel programming
• CUDA: Dominant proprietary framework

More on CUDA

• Graphic cards support upto certain cuda version. Eg. my card when nvidia-smi is run shows CUDA 12.1, it doesn’t mean cuda is installed
• So I can install cudatoolkit around that version.
• But cudatoolkit is separate from nvdia driver. You can possibly run cudatoolkit for your graphic card without having the driver.

• Pytorch

  • Eg. To run Pytorch you don’t need cudatoolkit because they ship their own CUDA runtime and math libs.
  • Local CUDA toolkit will be used if we build PyTorch from source etc.
  • If pytorch-cuda is built w cuda11.7, you need cuda11.7 installed in your machine. Does it not ship the runtime????
  • nvcc is the cuda compiler
  • torhaudio: https://pytorch.org/audio/main/installation.html

• Setting up CUDA on NixOS

  • So installing nvidia drivers is different game. Which has nothing to do with cuda. Figure that shit out first, that should go in configuration.nix or whatever configures the system.
  • Now for the CUDA runtime, there are few knobs. But most importantly LD_LIBRARY_PATH should not be set globally. See this: Problems with rmagik / glibc: `GLIBCXX_3.4.32' not found - #7 by rgoulter - Help - NixOS Discourse 
  • So install all CUDA stuff in a flake, and we should be good.
  • Check versions
    • nvidia-smi will give the cuda driver version
    • After installing pkgs.cudaPackages.cudatoolkit you’ll have nvcc in your path.
      • Running nvcc --version will give local cuda version
  • For flake

    postShellHook = ''
    #export LD_DEBUG=libs; # debugging

    export LD_LIBRARY_PATH="${pkgs.lib.makeLibraryPath [
      pkgs.stdenv.cc.cc
      # pkgs.libGL
      # pkgs.glib
      # pkgs.zlib

      # NOTE: for why we need to set it to "/run/opengl-driver", check following:
      # - This is primarily to get libcuda.so which is part of the
      #   nvidia kernel driver installation and not part of
      #   cudatoolkit
      # - https://github.com/NixOS/nixpkgs/issues/272221
      # - https://github.com/NixOS/nixpkgs/issues/217780
      # NOTE: Instead of using /run/opengl-driver we could do
      #       pkgs.linuxPackages.nvidia_x11 but that'd get another
      #       version of libcuda.so which is not compatiable with the
      #       original driver, so we need to refer to the stuff
      #       directly installed on the OS
      "/run/opengl-driver"

      # "${pkgs.cudaPackages.cudatoolkit}"
      "${pkgs.cudaPackages.cudnn}"
    ]}"
    '';


  • Other packages
    • sometimes we need to add these to LD_LIBRARY_PATH directly
    • pkgs.cudaPackages.cudatoolkit
    • pkgs.cudaPackages.cudnn
    • pkgs.cudaPackages.libcublas
    • pkgs.cudaPackages.cuda_cudart
    • pkgscudaPackages.cutensor
